Vision Asia is offering new sensors with non-fluid measurement capabilities. Able to detect the length and velocity of solid moving surfaces with extremely high accuracy, these sensors have cost-saving implications for industrial applications.

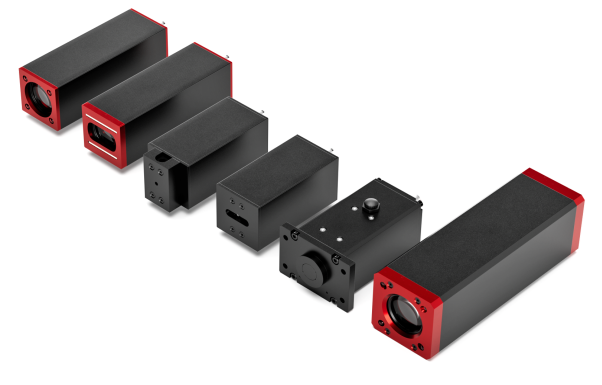

The Surface Length Velocimeter (SLV) is an ideal tool for shorter standoff distances from 1 to 65mm. The optics and processing unit are fully integrated into a small and compact housing unit, and can measure velocity in either 1 or 2 directions. Options for measuring speed without direction are also available.
The SLV is a non-contact sensor with an exceptional capacity to measure the speed and length of dynamic surfaces, as well as oversized particles such as sand and abrasive materials. The SLV has carved its niche as an indispensable tool in various manufacturing industries from textiles to extrusions, as well as vertical motion and vertical positioning monitoring, with many research applications as well.
| Measurement Specifications | |
| Standoff Distance * | [1] 0.4 mm (0.01″) [2] 45 mm (1.8″) [3] 61 mm (2.4″) |
| Depth of Field Measurement * | [1] 0.4 mm (0.01″) [2] 4.5 mm (0.18″) [3] 11 mm (0.4″) |
| Speed Range | 0 to 10 m/s (33 ft/sec, or 2000 ft/min.) |
| Speed Measurement Resolution | 0.2 mm/s (0.008 in/sec, or 0.04 ft/min) |
| Speed Accuracy | 99.7% |
| Length Measurement Resolution | 0.1 mm (0.04″) |
| Length Measurement Accuracy | 99.95% |
| Operating Parameters | |
| Temperature | 5 to 35°C |
| System Specifications | |
| Total Weight | 0.8 kg (2 lb.) |
| Sensor Width | 50.8 mm x 50.8 mm (2″ x 2″) |
| Sensor Length | 158.4 mm (6.25″) |
| Cable Length | 2 m (6.56 ft) |
| Power Supply | 110/240 Universal Power Supply Provided |
| Output | Quadrature, USB, 4-20 mA current loop; MODBUS RTU via RS485 or RS422 |
| Software OS | Windows 10 or 11 |
| Optional Features | |
| • Directionally sensitive sensor: Velocity range of -10 to 10 m/s • 2D Velocity: measurement of U and V velocity components • Trigger Option | |
